Olsson MFG., Transom Davits

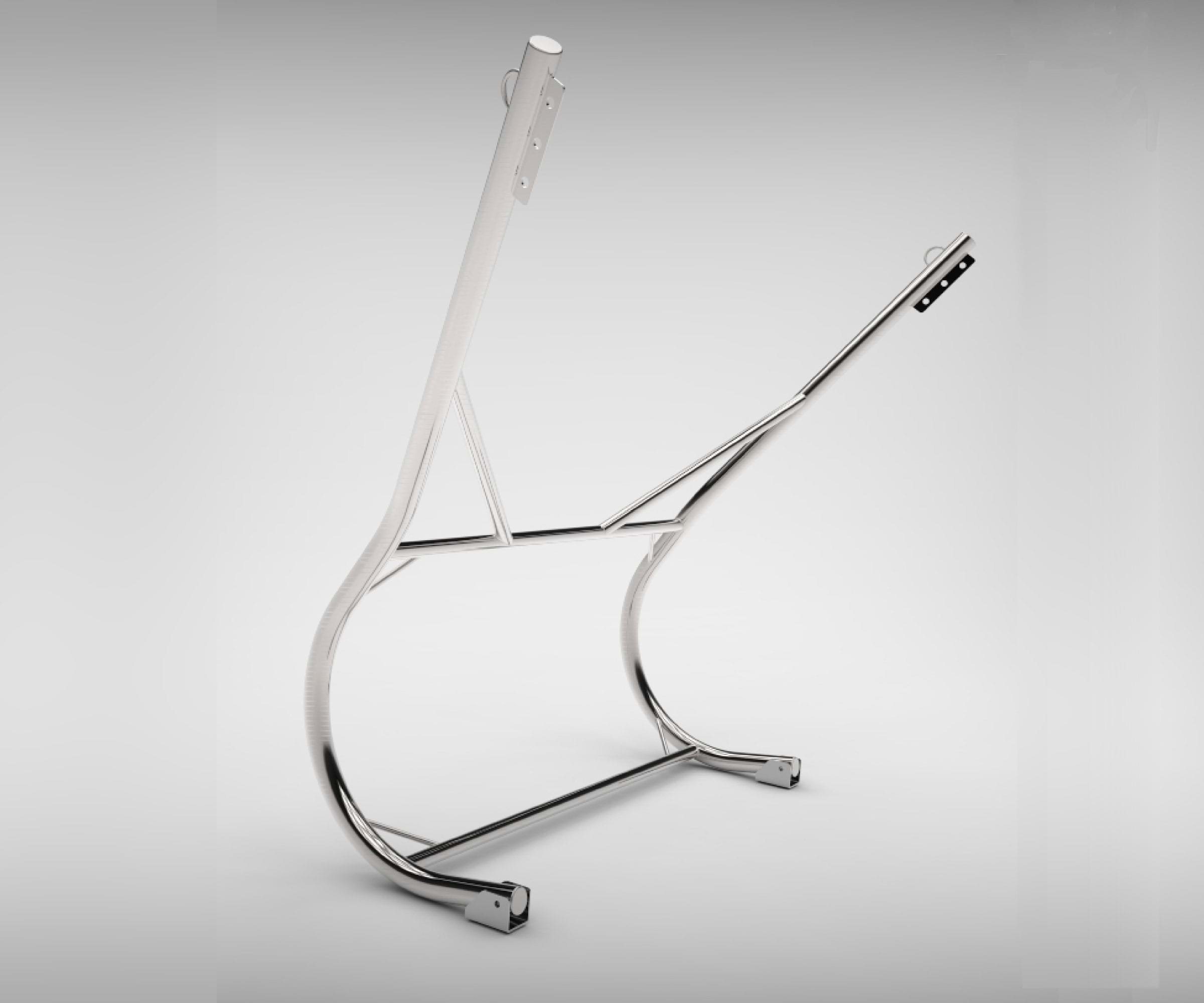

ST-275 Tilt Davit for Inflatable's
Features

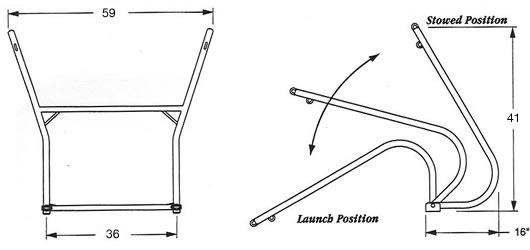

- The low profile tilt position is approximately 37½°. This allows
the motor and fuel to remain on the tender when stowed.
- Low profile stowage position provides exceptional stern visibility
with virtually no air cupping or drag.
- Smooth, manual one-person launch or retrieval utilizing the included
block-and-tackle and cleat.
- Hinged base, mounted on swim step allows davit to disconnect at
top and swing into the water, clearing the swim step when tender is launched.
- Lightweight, super buffed, marine-grade stainless steel tubing prevents
corrosion for long-lasting finish.
SPECIFICATIONS ST-275
- Rigid Fiberglass-Bottom Inflatable's.
- Maximum Capacity: 275 lbs. {Including Motor, Fuel Tank, Etc.)
- Maximum Dinghy Length: 12'.
- Hinge Mounting Width: 36'.
- Weight: 25 lbs.
